EL-50448 tpms reset tool is essential tool of replacement tire pressure sensor, tire pressure alarm remove or exchange tires.Works on most General Motors (Chevy/Buick/GMC/Opel) equipped with 315 or 433 MHz Tire Pressure Monitor system (TPMS) sensor.
EL-50448 tpms reset tool can help you reprogram all tires much easier just with 3 steps。Tire pressure monitor sensor activation tool is simple, fast and easy to use, activates the individual TPM sensor with the press of one button.

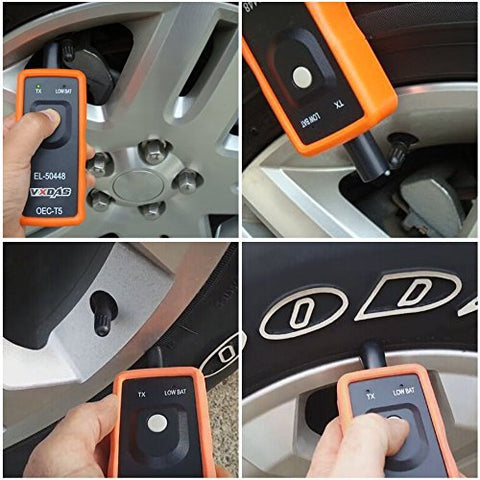

How to Use:Ensure that the vehicle is in the TPMS Learn Mode, and follow the service procedure. Hold tool against the sidewall of the tire, near the valve stem. Depress Learn button while holding the tool against the tire sidewall.
For Different vehicle EL50448 may need different times to reset all of your tire sensors after rotation
Notice: 1. When using EL50448, please make sure antenna in correct position. 2. Please make sure the 9v battery in good condition.
How to use EL 50448 TPMS Activation Tool
Step 1- Enter leaning mode
Set the gearshift lever to "P"
Put the ignition switch to “ON”
Enter the interface of tire pressure display by DIC
DIC shows "Press Set / Ctrl to re-learn"
Press “Set / Ctrl”
The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode
Step 2- Read tire pressure sensor information
Start from the front-left wheel,
Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall
El-50448 tire pressure tool starts by the start switch
Successful to read the tire pressure sensor information when the horn bleeps once
Step 3- Same method to read other tire pressure information
Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.
Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.
For certain vehicles equipped with a Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool 50448
1 PC * Auto Tire Pressure Monitor Sensor
